LIVING STONE INDUSTRIES, INC.
10 customers are viewing this product
Send inquiry
Description

Description

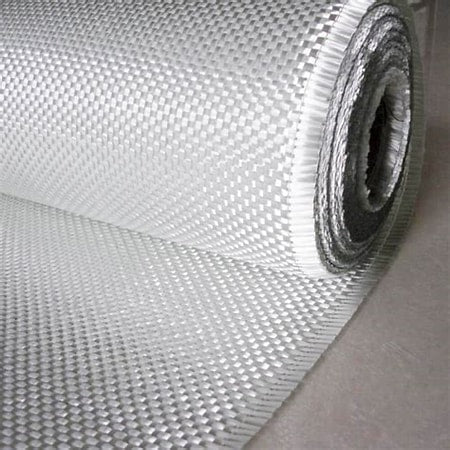

LSI 3732 Fiberglass cloth is effectively used to shield against moderate to heavy welding sparks. Its tight and heat-treated satin weave pattern results in a thicker, heavier and stronger fabric far more resistant to heat impact from welding sparks as compared to other thinner textured cloths. LSI 3732 fiberglass cloth is mainly used in industry: heat insulation, fire prevention, flame retardant. The material absorbs a lot of heat when it is burned by flame and can prevent the flame from passing through and isolate the air.

Application

1. Used in low temperature -196, high temperature between 550, with weather resistance

2.Resistant to chemical corrosion, strong acid and alkali aqua and various organic solvents

3.High strength with good mechanical properties

4.Rapid impregnating and good compatibility with resin



PRODUCT SPECIFICATION
PRODUCT  CODE UNIT E3732
YARN TYPE N/A Electrical Grade Fiber
WEAVE STYLE N/A 4 HS
WARP YARN N/A ECG 75 1/2
FILL YARN N/A ECG 75 1/2
WARP COUNT ends/inch 48 ± 1
FILL COUNT ends/inch 32 ± 1
WEIGHT oz/yd² 12.5 ± 0.3
THICKNESS inch 0.013 ± 0.001
WIDTH inch 38" / 50" / 60"
STD ROLL LENGTH ly/roll 500 - 660
BRK STRN / (W. x F.) lbs/inch > 300 x 255
FABRIC COLOR  N/A White
COLOR After Heat Cleaning  N/A Light Brown
SIZING STYLE N/A SILANE
SIZING CONTENT % < 1.3
L.O.I. % < 0.4
