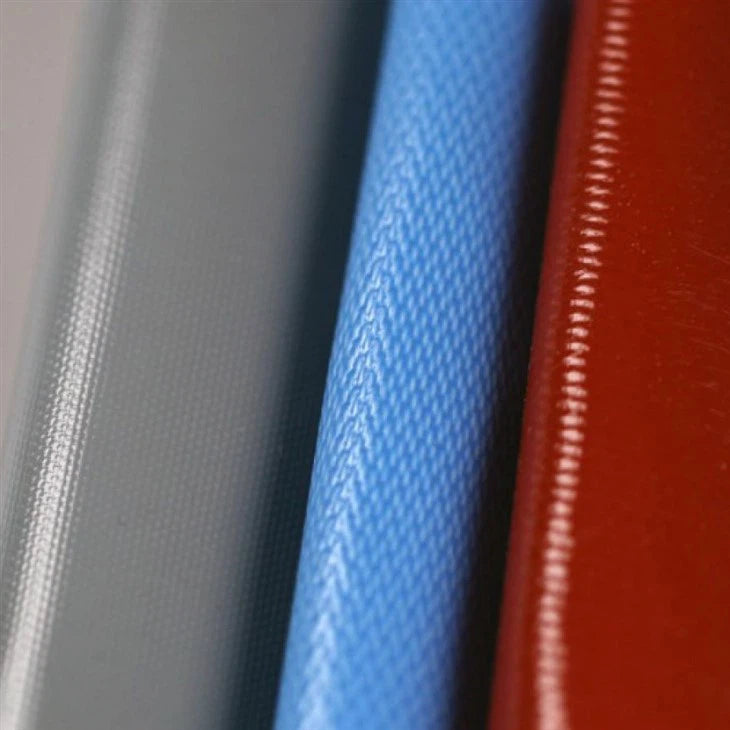

Silicon Coated Fabric

10 customers are viewing this product
Send inquiry

Description

1.High-temperature resistance: This product can withstand prolonged exposure to extremely high temperatures, with a temperature resistance of up to 700°C.

2. Corrosion resistance: The silicone coating provides outstanding corrosion resistance, allowing the product to be used in chemical corrosive environments.

3. Electrical insulation: It has excellent electrical insulation properties, making it suitable for electrical insulation applications.

4. Flexibility: The product is flexible and durable, making it easy to process and install.

5. Non-stick properties: The silicone coating ensures a non-stick surface, making it ideal for non-adhesive and mold-release applications.

Application

The Silicone Coated Fiberglass Cloth is widely used in the following fields:

1.Aerospace: Used as heat insulation and heat-resistant covering materials for aerospace equipment.

2. Automotive industry: Used in automotive engine heat shields and exhaust system insulation materials.

3. Electrical insulation: Used as insulation gaskets, insulating sleeves, and other electrical insulation materials.

4. Chemical corrosion protection: Used as corrosion-resistant covering materials for chemical tanks, pipelines, etc.

5. Welding protection: Used for flame and spatter protection during welding processes.

6. Other fields: Also applicable in consumer baking and grilling products such as oven mats, grill baskets, and barbecue mats.


COMPOSITION FIBERGLASS AND SILICONE RUBBER(INCLUDING METHYL)
TEMP. BASE FABRIC 550℃,COATING 260℃
BASE FABRIC STYLE 3732
WEAVE 4END SATIN
WARP YARN EC9‐136TEX
FILL YARN EC9‐136TEX
WARP×WEFT DENSITY 18×12.6 ENDS/CM
WEIGHT BEFORE TREATMENT 420G/M²
WEIGHT AFTER TREATMENT 575G/M²(BOTH SIDES), 500G/M²(ONE SIDE)
THICKNESS 0.45MM
WIDTH 1.0 OR 1.5M
LENGTH 50M OR 50YD
TENSILE STRENGTH WARP ≥1800N/2.5CM
TENSILE STRENGTH WEFT ≥1300N/2.5CM
FIRE RESISTANCE EXCELLENT
COLOR RED OR GRAY ,OTHERS ON REQUIREMENT
